Aluminum Alloy Machinery Part vs Steel Parts: Which Is Better?

The choice between aluminium alloy and steel parts for industrial machinery components remains a key procurement strategy. Aluminium alloy machinery parts can reduce weight by up to 65% compared to steel while retaining structural integrity in weight-sensitive, corrosion-prone settings where thermal management is important. High-tensile strength, high-temperature resistance above 400°C, and large load-bearing applications favour steel parts. Junsion's modern manufacturing capabilities allow for precise customisation in both materials, with tolerances of ±0.01mm and surface roughness < Ra 0.8 μm. This makes the choice less about "better" and more about "better suited" for your operation.

Introduction

Performance, operational costs, and dependability depend on the choice of materials for machinery components. Precision hardware is made from aluminium alloy and steel, which have varied physical properties for industrial uses. Electronics, communications, consumer products, and logistics procurement managers must streamline component requirements, manage budgets, and meet regulatory criteria.

Transportation costs, energy utilisation, maintenance, and equipment lifespan all depend on the choice of materials. Junsion sees global enterprises wanting tailored mechanical performance and economic viability. This comparison addresses real issues procurement professionals and product developers have when buying machinery components and provides guidelines for selecting materials that comply with ISO 9001:2015 and RoHS.

Understanding Aluminum Alloy Machinery Parts and Steel Parts

Core Properties of Aluminum Alloy Materials

Industrial uses for 6061, 6063, and 7075 aluminium alloy machinery parts are versatile. 6061 alloy is ideal for machining, welding, and medium strength in automation equipment structural frames and brackets. Extrusion of heat sinks and enclosures with thermal management is best with 6063. The aerospace and automotive industries use 7075 aluminium alloy's fatigue resistance and strength-to-weight ratios, which rival steel grades.

The materials exhibit tensile strengths of 240 MPa (6063-T5) to 572 MPa (7075-T6) and a density of 2.7 g/cm³, about one-third that of steel. This fundamental weight advantage minimises moving part inertia, transportation energy, and installation complexity. Aluminium surfaces without coatings are protected from damp or mildly corrosive conditions by their natural oxide layer.

Steel's Mechanical Advantages

Tensile strength exceeds 800 MPa in high-grade carbon steel and 1,200 MPa in specialised alloy steels, making steel parts dominant in heavy-duty machinery. It can withstand compressive, torsional, and impact loads that would distort aluminium. Stainless steel variations offer corrosion resistance like aluminium while maintaining steel's strength, albeit at higher expense.

From rolling material, steel components are cast, forged, or machined. Due to tougher tooling and slower machining, lead times are 15-20% greater than aluminium. Steel's density (7.85 g/cm³) is important in applications where weight impacts performance, but it also provides vibration dampening and structural strength for precision machinery foundations.

Manufacturing Process Comparison

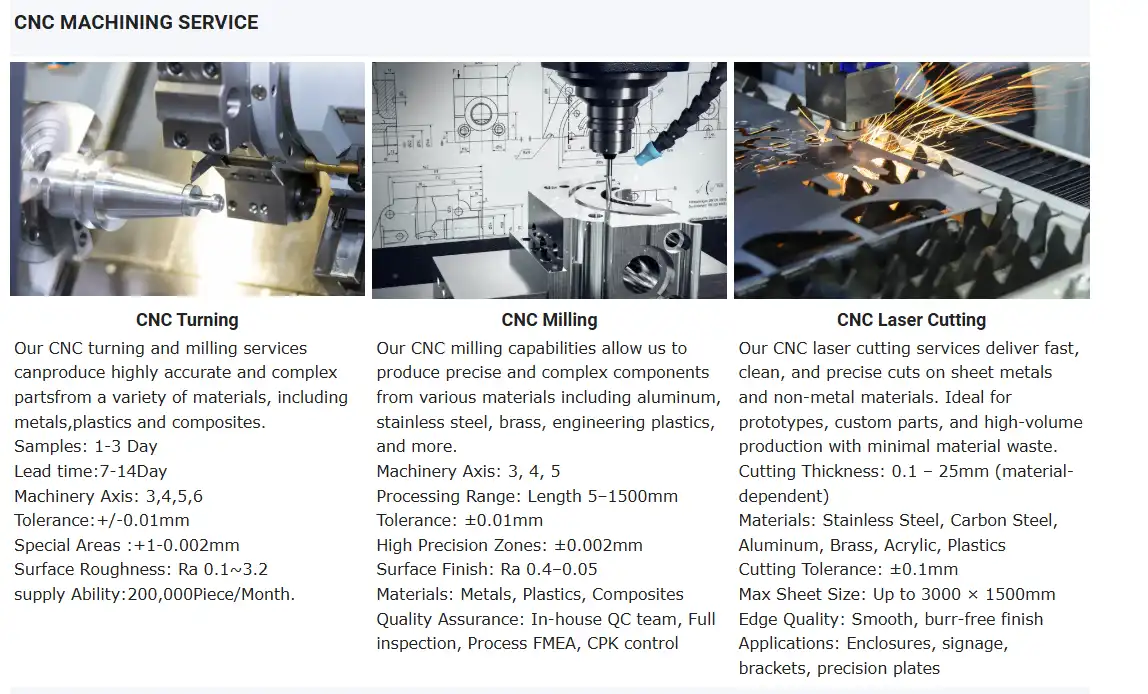

In Junsion's 1,600-square-metre facility, 32 powerful CNC machines use five-axis machining, EDM, and precision turning to process both materials. Due to lower cutting forces and tool wear, aluminium alloy parts for machinery manufacture 3-4 times faster than steel. Shorter manufacturing cycles and faster response to time-sensitive requests make this speed advantage competitive for procurement managers with tight project deadlines.

Surface finishing options vary widely per material. Anodising aluminium creates a 25-micron wear-resistant oxide layer and allows colour customisation. Steel needs plating, blackening, or painting to prevent corrosion, and QPQ treatment makes worn surfaces hard. Our manufacturing tolerances achieve ±0.01mm dimensional accuracy and Ra 0.8 μm surface roughness for both materials, meeting precision standards.

Benefits and Limitations: Aluminum Alloy vs Steel Machinery Parts

Aluminum Alloy Advantages in Modern Applications

Weight reduction is aluminium alloy machinery parts' major benefit, notably in robotics, aerospace, and mobile automation equipment where bulk affects energy efficiency and performance. During acceleration and deceleration, aluminium robotic arms consume 20–35% less power than steel ones. Efficiency lowers electricity bills and extends motor life over thousands of hours.

Aluminium has five times the thermal conductivity of steel, making it ideal for electronics housings, motor mounts, and power management systems. Cooling systems are simplified by machining 6061 or 6063 alloy components to remove heat from sensitive circuits. Logistics storage components are exposed to varying humidity levels; therefore, corrosion resistance in non-marine environments simplifies maintenance and increases service intervals without coating.

These industries employ aluminium alloy components because their electromagnetic neutrality prevents interference with critical communications and medical devices. Non-magnetic properties help compass and MRI applications. Total cost of ownership includes lower transportation, installation, and operational energy costs, offsetting the upfront material premium.

Steel's Performance Under Demanding Conditions

Gears, shafts, and heavy machinery frames need steel components that can tolerate higher stress concentrations without permanent deformation. Steel is compact and saves space, but aluminium needs 40% more cross-sectional area to same load capacity. Steel is recommended for high-temperature applications above 300°C, as the strength of aluminium alloys decreases above 200°C.

Steel is cheaper per kilogram in bulk applications with light weight. Standard carbon steel is 30-50% cheaper than aluminium, but machining and finishing time negate these savings. Aluminium assemblies require threaded inserts, whereas steel's hardness strengthens threads and fasteners.

Limitations Requiring Consideration

Galvanic corrosion can occur when aluminium alloy components come into contact with other metals without isolation. Despite the oxide layer, coastal or chemical treatments can cause pitting corrosion, requiring anodised or coated surfaces. Fatigue strength is acceptable for most applications but more sensitive to stress concentrations than steel, necessitating accurate fillet radii and surface finish during design.

Steel's most significant downside is corrosion, which requires costly and sophisticated treatments. Weight penalties affect the dynamic performance of motion-control applications, installation labour, and transportation costs. Without stainless grades or preventative treatments, moisture contact causes rust within days, requiring climate-controlled warehousing and inventory storage.

How to Choose Between Aluminum Alloy and Steel Parts for Your Machinery?

Environmental Assessment Criteria

Material viability depends largely on operating conditions. Anodised aluminium alloy or stainless steel with surface treatments works well in humid warehouses and chemically active environments. With suitable alloy selection, cryogenic applications below -40°C can use standard aluminium alloys, but not over 300°C.

Process salts, acids, alkalis, and solvents for evaluation. The oxide layer is destroyed by strong alkalis, but aluminium resists most organic chemicals and weak acids. Acids erode steel; alkalines strengthen it. Anodised aluminium or costly stainless steel is used for nautical applications since carbon steel is difficult to maintain.

Load and Stress Analysis

Estimate component working loads using static weight, dynamic forces, vibration amplitudes, and shock effects. 7075 aluminum alloy machinery parts are ideal for aerospace structural components and high-performance sports equipment because they have the tensile strength of several medium-carbon steel grades without the weight. Military use of 7075 aluminum in M-16 rifle components implies strong stress cycling capacity.

Weariness affects material safety. If properly designed, 7075 aluminium vehicle suspension components, bicycle frames, and archery equipment can withstand millions of stress cycles, while steel has 2-3. 1.1. Gears, shafts under torsional pressure, and heavy-press frames favour steel's shear strength.

Customization and Manufacturing Considerations

Compare design complexity and tolerance to material manufacturing parameters. Rapidly machining aluminium alloy machinery parts allows cheap manufacturing of complex geometries, thin walls, and five-axis features. Junsion's CNC skills manufacture aluminium components with internal passageways, undercuts, and fine details that steel would be too expensive to machine.

Batch size affects material choice economics. Aluminium's faster machining and reduced tooling wear lower per-part costs for small manufacturing runs under 100 pieces. Although steel takes longer to process, large orders may justify its material cost advantage. Aluminium has 25-35% shorter delivery times than steel for complex geometries.

Industry-Specific Application Patterns

Aluminium alloy parts reduce inertia and speed up robotic arms, linear actuators, and gantry systems. To maximise weight distribution, automakers balance aluminium hoods, trunk lids, and suspension components against steel chassis. Imaging equipment housings and surgical instrument components are made of sterilisation-compatible, non-magnetic aluminium.

Aircraft fuselages, wings, and landing gear are made from aluminium 7075 alloy to reduce weight and improve fuel economy. Thermal management and electromagnetic shielding are common in 6063 aluminium used in consumer electronics and AI enclosures. Aluminium alloy parts in luxury appliances reduce shipping costs and improve quality.

Maintenance and Longevity: Maximizing the Value of Your Machinery Parts

Aluminum Component Care Protocols

Aluminium alloy machinery part inspections show surface pitting, stress cracks around fastener holes, and galvanic corrosion at dissimilar metal connections. Clean surfaces periodically with moderate alkaline cleaners (pH 9-10). Avoid strong caustic solutions that destroy the oxide layer. Anodised components are protected indefinitely under normal conditions and require only visual inspection for coating damage.

Bolt torque parameters should be checked since aluminium threads creep under vibration. Use thread-locking compounds and verify torque every 6–12 months on critical joints. Anti-seize additives with zinc or aluminium particles prevent galvanic action between aluminium and steel fasteners. Electrical isolation nylon or plastic washers should be replaced annually.

Steel Maintenance Requirements

Painted or plated steel components need careful corrosion monitoring at weld seams, drilled holes, and machined surfaces. To prevent rust, promptly replace damaged finish areas with appropriate coatings. Use rust-preventative oils in storage and shipment to reduce oxidation before installation.

While less maintenance-intensive, stainless steel machinery parts are susceptible to chloride-induced pitting in coastal areas. To prevent corrosion, clean stainless surfaces biannually with citric acid-based solutions. Welds and heat-affected zones where chromium depletion may diminish corrosion resistance should be passivated if dull or discoloured.

Longevity Factors Affecting Total Cost

A properly maintained aluminium alloy machinery item lasts 15-20 years in controlled settings and 10-15 years outside when anodised. Steel with complete protective coatings lasts longer but requires more care. Aluminium reduces downtime and simplifies maintenance, improving corrosive equipment performance.

In severe high-cycle applications above 10 million stress reversals, fatigue life estimations favour steel, although aluminium performs well in moderate-cycle industrial equipment applications. Design optimisation, including large fillet radii, smooth surface finishes, and safety measures, extends the service life of aluminium components in medical equipment and aerospace.

Procurement and Sourcing Insights: Where and How to Buy Quality Aluminum Alloy and Steel Parts?

Supplier Evaluation and Certification Verification

Prioritise ISO 9001:2015-certified suppliers with defect-free quality management systems and batch consistency. Without RoHS compliance verification, components may face customs delays and regulatory penalties in Europe and North America. Request alloy composition, mechanical properties, and heat treatment certifications for every order.

Junsion uses ultrasonic testing, precision measurement devices, and batch inspection to find faults before export. With ±0.01mm tolerances, our 32 CNC machines offer rapid scalability from prototype to full production. Supply chains that provide testing documentation, material traceability, and timely technical help during product development benefit procurement professionals.

Customization Capabilities and Lead Time Management

Consider vendors who handle difficult geometries, tight tolerances, and unique surface treatments. Five-axis machining lets aluminium alloy equipment part manufacturers build complicated parts in one setup, reducing time and boosting accuracy. EDM allows for precise details and hard-to-machine aluminium and steel shapes.

Aluminium components take 2-3 weeks and steel ones 3-5 weeks, depending on design complexity and order volume. Premium urgent orders can save time by 30-40%. Modifying the timetable for the product development cycle is easier with responsive suppliers who stock materials and flexible manufacturing schedules.

Pricing Structures and Negotiation Strategies

Aluminium alloy parts for machinery cost 30-40% for materials, +/- machining labour, tooling, and finishing. Volume savings start at 100 pieces and can reach 15-25% at 500 pieces. Steel components have comparable discount structures despite cheaper raw material costs because machining time dominates production costs.

Request material, machining, finishing, and tooling quotations to find negotiating opportunities. Standardising designs across product lines reduces tooling and setup time, cutting per-part costs at modest quantities. Frame agreements that guarantee annual purchase volumes for preferential pricing and priority production scheduling are useful for organisations with predictable component demand.

Global Sourcing Considerations

Weight reduces transportation expenses for aluminium alloy equipment parts; therefore, overseas sources are cheaper. Chinese manufacturers offer reasonable pricing and high quality, but procurement managers must carefully verify certificates and audit frequently. Clear specs, tolerance interpretation, and finishing standards communication prevent costly mistakes.

Import tariffs, delivery times, and currency fluctuations greatly affect landed costs. Shipping costs 8–12% of FOB prices from Asian suppliers for aluminium components, which pay 2-6% import fees depending on classification and trade agreements. Steel objects weigh more, increasing freight costs and negating raw material savings. When considering global sourcing, consider cost, lead time, IP protection, and quality.

Conclusion

Material selection between aluminium alloy machinery Part requires careful consideration of operational needs, environmental circumstances, and cost. Aluminium shines in weight-sensitive, thermally demanding, corrosion-prone automation, aircraft, medical equipment, and consumer electronics applications. For greatest strength, high temperatures, and cost-constrained heavy machinery, steel is best.

Precision CNC machining, new alloys, and sophisticated surface treatments obscure traditional distinctions, boosting both materials' applications. Successful procurement balances technical criteria, budget, supplier capabilities, and long-term maintenance. Partnering with experienced manufacturers who offer full customisation, rigorous quality control, and responsive technical support guarantees that component performance meets operational needs and optimises project economics.

FAQ

Can aluminum alloy machinery parts completely replace steel in automotive applications?

Partial replacement proves practical in specific components. Aluminum suits body panels, suspension elements, and engine blocks where weight reduction improves fuel efficiency. Critical drivetrain components, including crankshafts and transmission gears, require steel's superior strength and wear resistance. Hybrid approaches optimize material selection based on each component's stress profile and performance requirements.

Which aluminum alloy grades work best for precision machinery components?

The 6061 alloy balances machinability, strength, and corrosion resistance for general machinery applications. The 7075 grade delivers maximum strength approaching steel in aerospace and high-stress components. The 6063 alloy suits thermal management and extrusion applications. Selection depends on specific load requirements, environmental exposure, and manufacturing processes planned.

How do lead times compare when ordering custom aluminum versus steel parts?

Aluminum alloy machinery parts typically ship 25-35% faster than steel equivalents due to superior machinability and reduced tool wear. Complex geometries amplify this advantage. Standard lead times range from 2-3 weeks for aluminum components versus 3-5 weeks for comparable steel parts. Rush processing can compress these timelines further when needed.

Partner With Junsion for Premium Aluminum Alloy Machinery Part Manufacturing

Junsion delivers precision-engineered aluminum alloy machinery parts and steel components tailored to your exact specifications, combining advanced CNC capabilities with rigorous quality standards. Our 32-machine production facility in Dongguan processes 6061, 6063, and 7075 aluminum alloys alongside steel materials, achieving ±0.01mm tolerances and Ra 0.8 μm surface finishes. We serve the automation, vehicle, medical, aerospace, and robotics sectors with rapid turnaround and ISO 9001:2015 certified processes.

Whether you require lightweight aluminium components for energy-efficient automation systems or robust steel parts for heavy-duty applications, our engineering team provides comprehensive support from design optimisation to final delivery. We offer complete surface treatment options, including anodising, plating, and specialized coatings that meet RoHS compliance standards. Our responsive approach ensures procurement managers receive technical guidance, competitive pricing, and reliable delivery schedules.

Connect with our aluminum alloy machinery part specialists to discuss your project requirements and receive detailed quotations. Contact Lock@junsion.com.cn to partner with a trusted aluminum alloy machinery part supplier committed to manufacturing excellence and customer success.

References

1. Davis, J.R. (2001). Alloying: Understanding the Basics. ASM International, Materials Park, Ohio.

2. Kaufman, J.G. (2000). Introduction to Aluminum Alloys and Tempers. ASM International.

3. Polmear, I.J. (2006). Light Alloys: From Traditional Alloys to Nanocrystals, 4th Edition. Butterworth-Heinemann.

4. ASM International Handbook Committee (1990). Properties and Selection: Nonferrous Alloys and Special-Purpose Materials, ASM Handbook Volume 2.

5. Starke, E.A. and Staley, J.T. (1996). "Application of Modern Aluminum Alloys to Aircraft", Progress in Aerospace Sciences, Volume 32, Issues 2-3.

6. Totten, G.E. and MacKenzie, D.S. (2003). Handbook of Aluminium: Physical Metallurgy and Processes, Volume 1. Marcel Dekker, Inc.
