Custom Locating Pins for OEM & High-Volume Production

When precision meets efficiency in manufacturing, custom locating pins become the unsung heroes of assembly lines worldwide. These precision-engineered components ensure perfect alignment, reduce production errors, and accelerate manufacturing cycles. At Junsion, we transform your exact specifications into high-performance locating pin solutions that drive operational excellence across electronics, communications, consumer goods, and logistics industries.

Why OEM & ODM Customization Matters for Precision Positioning Solutions?

To achieve excellence in manufacturing, more than just standard components are required. Every assembly line has its own set of issues, which necessitate the development of individualized positioning solutions. When precision tolerances exceed ±0.01mm or when particular materials such as titanium or exotic alloys become necessary, generic dowel pins and alignment pins frequently fail to meet the requirements.

The OEM and ODM relationships that we have in place help to bridge this gap by providing positioning pins that are specifically designed to meet the requirements of your manufacturing. We do not modify your processes in order to accommodate conventional components; rather, we modify our manufacturing capabilities in order to produce the ideal guide pin for your application.

When procurement managers learn that custom fixture pins can cut assembly time by thirty to forty percent while also enhancing product quality, the difference becomes immediately apparent. There is a transition that takes place as a result of each locating dowel being optimized for its particular function within your manufacturing ecosystem.

Our OEM/ODM Strengths in Precision Pin Manufacturing

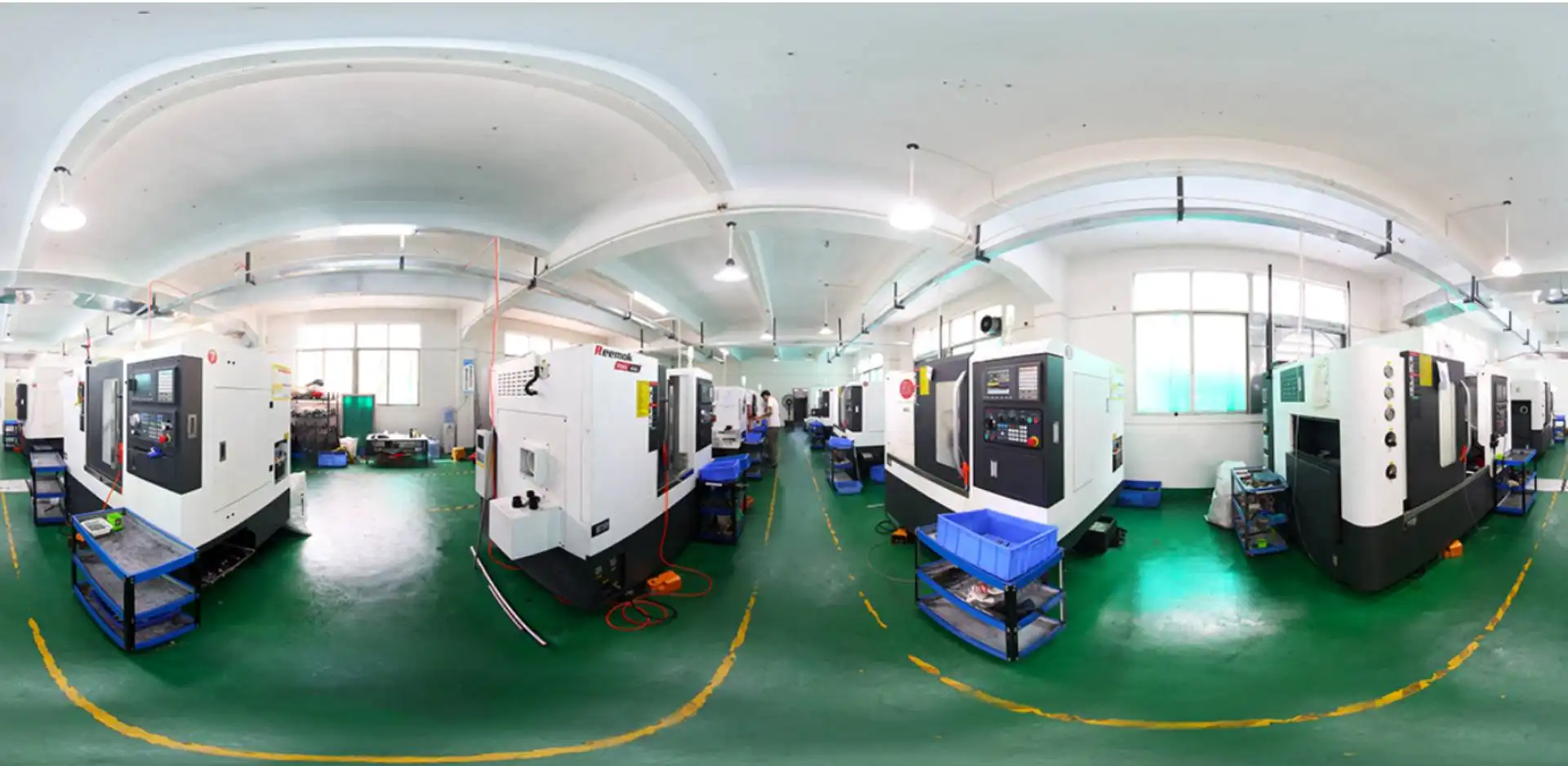

Located in Dongguan Junsion Hardware Co., Ltd., our facility spans 1,600 square meters and is home to 32 cutting-edge CNC machines that are specifically designed for the production of precise hardware. With our company having been established in 2019, we have been able to sell custom positioning solutions to more than twenty countries, thereby gaining competence in a wide range of industrial applications.

Our material capabilities cover the entire spectrum of needs that are required by the industrial sector. We mill locating pins from a variety of materials, including 45 steel for typical uses, aluminum alloy for lightweight assemblies, stainless steel for conditions that are corrosive, brass for electrical purposes, and specific polymers for requirements that are non-conductive. In the process of selecting materials, your particular operating conditions and performance needs are taken into consideration.

Our competitive advantage is defined by the precision of our manufacturing system. Our expertise in CNC, EDM, and five-axis machining allows us to attain surface roughness levels of Ra0.8μm or higher using these techniques. The elimination of the variability that causes disruptions in high-volume production is made possible by this level of precision, which guarantees that assembly pins will always seat correctly.

The establishment of global industrial alliances is made possible by the provision of quality certification. We ensure that every indexing pin complies with international standards by utilizing a quality management system that is certified to ISO 9001:2015 and by adhering to RoHS regulations. Testing of materials regularly and inspections of dimensional correctness using sophisticated measurement techniques are used to confirm that the quality is constant throughout all manufacturing runs.

Comprehensive Customization Options for Your Positioning Needs

Your precise dimensional specifications are the starting point for the modification of the physical design. Depending on the diameter, length, or configuration that your assembly demands, our locating sleeves can be made to meet your specifications. Whether you require stepped locating bolts, tapered guide pins, or complex geometries with various positioning characteristics, our technical team works together to maximize the manufacturability of the product while preserving its usefulness.

Dimensional customisation is only the beginning of functional customization. We can engineer locating pegs that have precise load capacities, thermal expansion characteristics, and wear resistance features, among other characteristics. On the other hand, machine pins that are meant for permanent installation are subjected to a different heat treatment than those that are designed for high-cycle applications.

Fundamental positioning pins can be transformed into specific locating fasteners through the use of surface treatment options. Processing techniques such as polishing, anodizing, plating, blackening, electrophoresis, QPQ treatment, and wire drawing are among the finishing options that we offer. Specific performance attributes are improved by each surface treatment, while aesthetic requirements are satisfied by each treatment.

Material engineering is the most advanced form of customization that we are capable of providing. For normal uses, we use standard carbon steel, but for particular situations, we use exotic materials. Our selection of alloys is based on the operating environment in which you intend to use them. Titanium thread rods are particularly useful in aeronautical applications, whereas brass components offer superior electrical conductivity for electronic assembly.

The use of branding ensures that your unique locating devices continue to reflect your company's identity. We assist traceability needs by directly incorporating logos, part numbers, and identification markings into the design of the component. This helps to improve brand recognition while also satisfying traceability regulations.

The ODM Advantage: Co-Developing Revolutionary Positioning Solutions

ODM partnerships unlock innovation potential that standard purchasing relationships cannot achieve. When you collaborate with Junsion on new locating component development, our engineering expertise combines with your market knowledge to create breakthrough positioning solutions.

Recent ODM projects have produced locating tools that integrate multiple functions into a single component. One telecommunications client needed assembly pins that provided electrical continuity while maintaining mechanical positioning. Our collaborative development process created a hybrid locating element that simplified their assembly process while improving reliability.

Another innovation emerged from logistics equipment requirements. Traditional locating hardware couldn't withstand the dynamic loads in automated storage systems. Through ODM collaboration, we developed specialized positioning pins with integrated shock absorption, extending service life while maintaining precision alignment.

Co-development accelerates time-to-market by leveraging our manufacturing expertise during the design phase. Our engineers identify potential production challenges early, suggesting design modifications that improve manufacturability without compromising functionality. This proactive approach reduces prototype iterations and shortens development cycles.

Our Streamlined Customization Process

Our customization journey begins with comprehensive requirement analysis. We examine your application specifications, operating environment, volume requirements, and quality standards. This analysis ensures that every aspect of your custom positioning solution aligns with your production goals.

Design optimization follows initial consultation. Our engineering team reviews your CAD drawings, material specifications, and tolerance requirements. We suggest improvements that enhance manufacturability while maintaining or improving functionality. This collaborative refinement process often reveals opportunities to reduce costs while improving performance.

Material sourcing and quality inspection precede manufacturing. We verify material certificates, conduct incoming inspection procedures, and confirm compliance with your specifications. This attention to material quality ensures consistent performance across production runs.

Manufacturing execution employs our full range of processing techniques. CNC machining, turning, milling, grinding, and drilling operations create your locating pins to exact specifications. Our five-axis machining capabilities handle complex geometries that conventional equipment cannot produce.

Quality control verification confirms that every locating pin meets your requirements. Dimensional accuracy checks, surface finish measurements, and material property testing validate compliance before packaging and shipment. Our quality documentation supports your incoming inspection procedures and traceability requirements.

Benefits That Transform Your Manufacturing Operations

Custom locating pins deliver measurable improvements in production efficiency. Properly designed positioning pins reduce assembly time by eliminating alignment guesswork and positioning errors. Your operators achieve consistent results faster, increasing throughput while reducing labor costs.

Quality improvements manifest through reduced rework and warranty claims. When assembly pins position components accurately every time, downstream quality issues disappear. This reliability translates directly into customer satisfaction and brand reputation enhancement.

Cost optimization emerges through reduced inventory complexity and improved supplier relationships. Custom positioning solutions often consolidate multiple standard components into a single, optimized part. This simplification reduces purchasing overhead while improving supply chain efficiency.

Risk mitigation provides long-term value through supply security and performance predictability. Our OEM partnerships include capacity planning and inventory management support, ensuring component availability when your production schedule demands it.

FAQ

What tolerances can you achieve on custom locating pins?

We routinely achieve tolerances of ±0.01mm on critical dimensions using our precision CNC and grinding capabilities. Tighter tolerances are possible depending on part geometry and material selection.

How quickly can you produce samples for evaluation?

Sample production typically requires 3-5 business days after design approval. Rush samples can be expedited based on complexity and the current production schedule.

What volume commitments are required for custom development?

We work with clients across all volume ranges, from low-volume specialty applications to high-volume production runs. Our flexible manufacturing approach accommodates changing demand patterns.

Can you provide material certifications and quality documentation?

All shipments include complete material certifications, dimensional inspection reports, and compliance documentation. We maintain full traceability throughout the production process.

What design support do you provide during development?

Our engineering team offers comprehensive design review, optimization recommendations, and manufacturability analysis. We collaborate to ensure your positioning solution meets both functional and production requirements.

Partner with Junsion: Your Trusted Locating Pin Manufacturer

Junsion transforms your positioning challenges into competitive advantages through precision engineering and manufacturing excellence. Our comprehensive capabilities, quality certifications, and global experience make us the ideal locating pin supplier for your OEM and ODM projects. Ready to optimize your assembly processes with custom positioning solutions? Our engineering team stands ready to discuss your specific requirements and develop locating pins that exceed your performance expectations. Contact us today at Lock@junsion.com.cn to begin your customization journey. Let Junsion become your strategic partner in precision positioning technology, delivering components that enhance your manufacturing excellence while supporting your growth objectives.
