What Tolerances Can Plastic Gear Parts Achieve?

When made with modern CNC machining methods, Plastic gear parts can have tolerances as small as 0.01mm, which is comparable to many metal gear applications. When you mix modern engineering-grade polymers with precise manufacturing methods, you can get dimensions that meet strict requirements in robotics, medical devices, and consumer electronics. The tolerance that can be used depends on the material chosen, the way of production, and the external controls that are in place during production. When designed correctly and quality-controlled, plastic gears work reliably and have benefits over traditional metal gears, such as being lighter, having less friction, and being quieter when they're in use.

Understanding Plastic Gear Parts Tolerances

Tolerance standards tell manufacturers how much difference in size is allowed during production. This has a direct effect on how well gears mesh, transfer power, and keep working efficiently. When we talk about accuracy in polymer-based gearing systems, we're talking about how to balance the properties of the material with the ability to make the gear.

Defining Tolerance in Polymer Gearing Applications

The amount that a dimension can vary from its stated specs is called its "dimensional tolerance." This includes the accuracy of the tooth profile, the stability of the pitch width, and the accuracy of the center distance when making gears. In the past, metal gears were the most common choice for high-precision tasks. However, new Plastic gear parts can now compete well in situations where margins need to be between ±0.01mm and ±0.05mm. This precision level helps with smooth meshing, lowers backlash, and increases the life of parts in a wide range of working situations.

Material Selection Impact on Dimensional Stability

The dimensional stability of different industrial plastics is not the same. Nylon is very resistant to wear, but it absorbs water, which makes it slightly different in size. Acetal (POM) is great for precision uses because it keeps its shape well and doesn't absorb much water. When heated to 260°C, PEEK has great temperature stability and can still hold tight limits. Glass-filled plastics make things stiffer and less likely to expand when heated or cooled, but they may make the surface rougher. When procurement workers understand these material patterns, they can choose the right polymers based on the working environment, plastic gear parts, and the level of precision needed.

How Tolerance Affects Performance Metrics

Tighter standards have a direct effect on the amount of noise, shaking, and how well power is transferred. When gears are made within ±0.01mm accuracy ranges, they work more quietly, produce less heat through friction, and last longer. When accuracy is important, like in automation equipment and robots, plastic gear parts that are properly toleranced cut down on upkeep times and make the whole system more reliable. In medical devices and aerospace uses, where failure can have big effects, the link between tolerance and performance is very important.

Key Design and Manufacturing Factors that Influence Plastic Gear Tolerances

To get accurate control over dimensions when making polymer gears, you need to pay close attention to both the design factors and the production methods. The end tolerance limits are set by how gear geometry, tooling quality, and working factors work together.

Gear Geometry and Profile Accuracy Considerations

When it comes to flexibility, each type of gear is different. Because their teeth are straight and aligned to the shaft axis, spur gears are usually easier to make with tight tolerances. To keep the helix angle accurate, helical gears need more complex machining. For bevel gears, it's important to keep the cone angle correct, and for worm gears, it's important to keep the lead angle correct. For rack and pinion designs to work, the tooth spacing must stay the same over long lengths. Each shape changes the range of tolerances that can be used and the level of difficulty in production.

Mold Design and Material Shrinkage Compensation

Injection molding is a popular way to make Plastic gear parts, and the design of the mold has a big impact on the end dimensions. When engineering plastics cool down, they usually shrink between 0.3% and 2.5%, but this depends on the material's makeup. Skilled mold makers account for this expected shrinking by changing the sizes of the cavities to fit. Materials that are filled with glass shrink less, but they may shrink differently in flow and cross-flow directions. This is called anisotropic behavior. We at Dongguan Junsion Precision Hardware Co., Ltd. use advanced mold design tools and years of experience to make sure that the shape of the cavities is perfect for accurate measurements.

CNC Machining Versus Injection Molding Precision

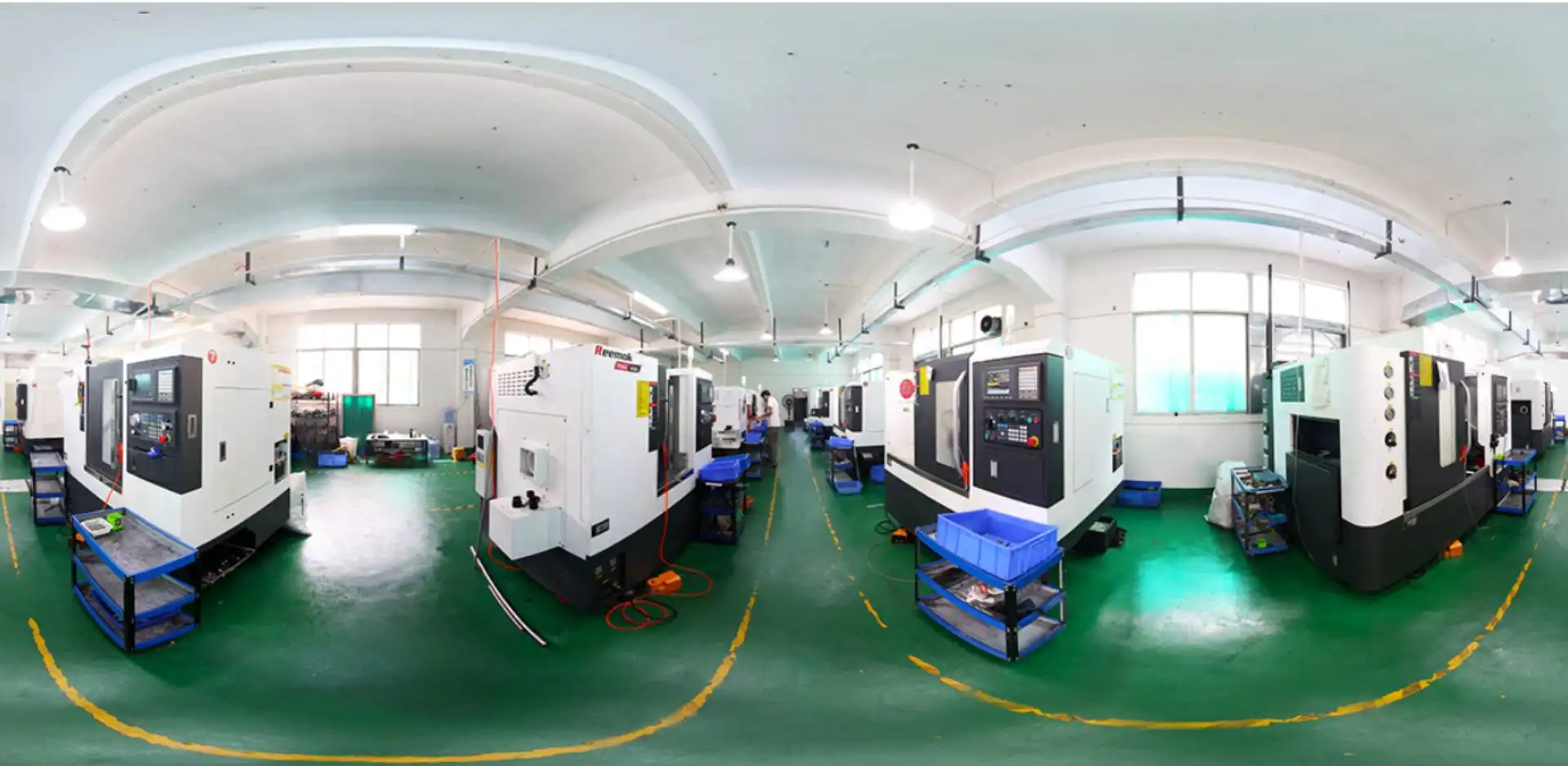

When compared to injection casting, CNC machining can hold tighter standards, especially for small production runs. We have 32 high-tech CNC tools at our building that can precisely turn and mill parts to within ±0.01mm of accuracy. This method gets rid of the different levels of shrinking and lets changes be made after the part has been machined. Injection molding, on the other hand, is cheaper when you make more of them. With the right process controls, you can usually get margins of ±0.05mm to ±0.10mm. To get the best cost-benefit ratio, many makers use both techniques together. They inject mold near-net forms, and then CNC finish important parts.

Environmental Controls During Production

Changes in temperature and humidity during production have a big effect on the security of dimensions. Keeping the production area at 20°C ±2°C and the relative humidity at 50% ±10% keeps materials from expanding and contracting too much. Some hygroscopic materials, like nylon, need to be dried out first so that they don't change size when they come in contact with water. Our 1,600-square-meter factory has environmental tracking systems that keep the temperatures stable during the manufacturing process. This helps make sure that the same tolerances are met in each production batch.

Comparing Plastic Gear Parts Tolerances to Metal Gears

Knowing how polymer and metal bearing solutions work differently helps purchasing managers choose the right material for the job based on the needs of the job and the available budget.

Dimensional Accuracy Capabilities by Material Type

Tolerances for metal gears made by hobbing or grinding can reach ±0.005mm to ±0.02mm, which is the highest level of accuracy in the business. CNC cutting can make high-quality Plastic gear parts with tolerances of ±0.01mm, which are good enough for most industry uses. When comparing injection-molded metal gears to injection-molded plastic gears, the difference gets a lot smaller. Usually, both fall within the ±0.05mm to ±0.10mm range. Instead of assuming that metal is naturally more precise than plastic gear parts, the tolerance needs should be taken into account when choosing a material.

Noise, Vibration, and Operational Characteristics

In comparison to metal alternatives, plastic gear parts have built-in damping qualities that lower operating noise. This trait is useful for improving the user experience in consumer gadgets and home tools. The material is flexible, so it can handle small alignment issues and shock loads. This makes it last longer in a variety of loading situations. Metal gears work well in situations with a lot of power and high or low temperatures, but they may need extra systems for maintenance. Artificially intelligent devices and robots are using designed plastics more and more because they are self-lubricating and make systems simpler.

Cost-Benefit Analysis for Different Applications

Before choosing a material, you have to weigh its original prices against its long-term costs. When you add up the costs of the material, cutting, and finishing, plastic gear parts are usually 30 to 50 percent less expensive than metal parts of the same size. Less weight means cheaper shipping and lighter products generally, which is especially helpful in aerospace and automobile uses. But metal gears might be more cost-effective in places with very high loads or extreme temperatures, where plastic gears need to be replaced more often. People who work in procurement should look at the total cost of ownership instead of just the unit price.

Maintaining and Ensuring Optimal Tolerances in Plastic Gear Parts

Dimensional accuracy at delivery is only the beginning. To ensure uniform performance and client happiness, tolerance integrity must be maintained throughout the lifecycle of the product.

Measurement Methods and Quality Control Protocols

To check the quality of measurements, you need high-tech metrology tools. Coordinate measuring tools (CMM) can check tolerances in three dimensions with a precision of just a few microns. Gear analyzers check for flaws in tooth profiles, changes in pitch, and runout traits. Optical comparators let you measure complex shapes without touching them. At Junsion, we use quality control systems that are ISO 9001:2015 approved and do batch checks using advanced measuring tools to make sure that every part meets the required tolerances before it is shipped. As part of our quality control, we test the materials, make sure the measurements are correct, and make sure the products work properly.

Environmental Factors Affecting Long-Term Stability

How well Plastic gear parts keep their original dimensions over time depends on how they are used. Temperature cycle wears down materials, while high temperatures cause them to expand. When hygroscopic materials like nylon are exposed to moisture, they swell and change size. Some polymers can break down in chemical conditions, which can change their mechanical qualities and sizes. Engineers can choose the right materials and set realistic service life standards if they know about the natural challenges that are unique to each application. When materials are properly matched to their working environments, tolerances don't break down too quickly.

Supplier Selection and Certification Importance

Purchasing risks are greatly reduced when you work with makers who keep their quality certifications up to date. RoHS compliance makes sure that global markets are safe for the climate and follow the rules. When sourcing Plastic gear parts, tolerance performance is more reliable if suppliers have well-documented process controls, calibrated tools, and effective tracking systems. More than 20 countries buy from us, spanning the electronics, communications, consumer goods, and logistics industries. Our global experience gives us a better understanding of different regulatory standards and application challenges, allowing us to recommend the most suitable specifications for your needs.

Procurement Guide: Ordering Plastic Gear Parts with Precision Tolerances

To successfully find precision gearing parts, you need to communicate clearly, give clear requirements, and build smart partnerships with suppliers that balance quality with business needs.

Preparing Comprehensive Technical Specifications

Misunderstandings and expensive changes can be avoided by using clear models and specs. Include the nominal measurements with their respective tolerances, the material details (such as grade and filler content), the surface finish requirements (for example, Ra0.8µm roughness), and the performance factors for how well it works. Give details about the working conditions, such as the temperature ranges, load factors, and speed needs. Write down the standards for inspection and the factors for acceptance. If you are clear about what you need from the start, providers will be able to give you more accurate quotes, and there will be fewer problems during production validation.

Balancing Tolerance Requirements with Budget Constraints

Costs of making things go up exponentially. Plastic gear parts as standards get tighter. A gear with a tolerance of ±0.01mm might cost 50% more than the same part with a tolerance of ±0.05mm because it needs more work to be done on it, production speeds are slower, and there is more waste. Check to see which variables really need tight control and which ones can handle bigger ranges without affecting performance. Strategic tolerance distribution, which means tightening important features and loosening up on less important ones, lowers costs without affecting functioning. Talk to suppliers early on in the planning process about tolerance standards to find out how they will affect costs.

Prototype Validation Before Volume Production

Ordering small amounts of prototypes before agreeing to large production runs lowers the risk. Prototypes allow testing in real-world circumstances, which can show problems with the choice of material, the requirements for tolerances, or the assumptions made during the design process. CNC cutting makes it easy to make prototypes quickly without having to buy expensive tools. Testing sample Plastic gear parts makes sure they are the right size, work properly, and work with other parts that fit together. This step of approval stops expensive delays and redesigns in production and builds trust in the supplier's skills before going to mass production.

Lead Time and Logistics Considerations

When sending precision parts, they need to be handled carefully so that they don't get damaged and lose their standards. Talk to your providers about the packaging you need to make sure it protects against damage, moisture, and changes in temperature while it's being shipped. Lead times depend on the tolerance requirements; tighter standards take more time for handling and inspection. Just-in-time inventory methods should be balanced with buffer stock for important uses when planning when to buy things. We help customers in the medical, automation equipment, and other time-sensitive industries meet their production plans by responding quickly and managing transportation well.

Conclusion

Plastic gear parts can have tolerances of up to ±0.01mm thanks to improved CNC machining and careful material choice. They can meet the highly precise needs of many industries. Knowing how the properties of materials, industrial methods, and environmental factors affect the accuracy of measurements gives procurement workers the power to choose parts that meet performance goals while also being cost-effective. While metal gears are better in harsh conditions, designed plastics have many great advantages, such as being lighter, quieter, and more cost-effective in many situations. To be successful, you need to work with makers who have a lot of experience, strict quality controls, and an understanding of how materials and specifications work in real-world situations.

FAQ

1. What tolerance range is typical for injection-molded plastic gears?

When made under controlled conditions, injection-molded Plastic gear parts usually have margins of ±0.05mm to ±0.10mm. This range works well for consumer goods, home tools, and a lot of automation tasks that don't need to be very precise. Tighter tolerances need extra CNC finishing steps, which cost more but allow for accuracy close to ±0.01mm when needed.

2. Which plastic materials provide the best dimensional stability?

Acetal (POM) is great for precision gears because it keeps its shape well, doesn't absorb water easily, and doesn't expand or contract much when heated or cooled. PEEK is more stable at high temperatures (up to 260°C) and can still hold tight limits. Compared to nylon that isn't filled with glass, nylon that is filled with glass has better stiffness and less heat expansion, but the surface may be a little rougher.

3. How do temperature changes affect plastic gear tolerances?

Most industrial plastics grow by about 0.0001 to 0.0002 mm per mm per degree Celsius. If it weren't limited, a 50°C rise in temperature could make a 100mm diameter gear grow by 0.5 to 1 mm. Operating temperature ranges should be taken into account when choosing a material. PEEK and other high-performance polymers keep their shape better over a wide range of temperatures than regular plastics.
